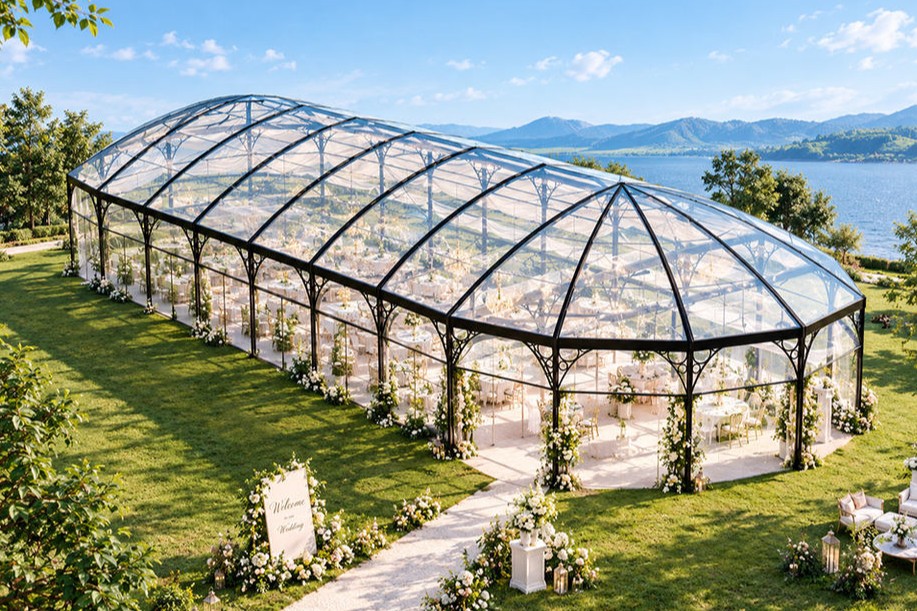

Discover the KENTEN atrium tent, featuring an aluminum alloy frame and span options ranging from 15 to 40 meters, suitable for weddings and various commercial events.
The open interior can accommodate wedding ceremonies, banquet seating, dining areas, reception spaces, and event decorations. Its modular design allows the overall dimensions and exterior appearance to be adapted to different locations, from garden wedding venues to larger hospitality and commercial projects.
For event organizers and venue operators, the Atrium Tent provides a flexible structure that can be configured for different event styles while maintaining a consistent architectural design.
Aluminum alloy structural frame
Clear-span layout for flexible interior planning
Available spans from 15m to 40m
Customizable overall length
PVC roof covering with multiple color options
Custom frame colors, including silver, black, beige, and sand
Transparent roof and wall options, depending on configuration
Modular construction for project-specific layouts
Suitable for weddings, banquets, hospitality, and commercial events
| Specification | Details |
|---|---|
| Product Type | Atrium Tent |
| Available Span Widths | 15m, 18m, 20m, 25m, 30m, 35m, 40m |
| Length | Customizable |
| Eave Height Options | 3m / 4m |
| Bay Spacing | 5m |
| Frame Material | Extruded Aluminum Alloy 6061-T6 |
| Frame Design | Four-channel aluminum profile, as specified |
| Roof Cover | PVC Fabric |
| Frame Colors | Silver, Black, Beige, Sand, Custom |
| PVC Cover Colors | White, Black, Beige, Sand, Custom |
| Installation | Modular Assembly |
| Application | Wedding, Banquet, Hospitality, Event |
| Span Width | Ridge Height Options | Length | Bay Spacing |
|---|---|---|---|
| 15m | 6.7m / 7.7m | Customizable | 5m |
| 18m | 7.2m / 8.7m | Customizable | 5m |
| 20m | 7.5m / 8.5m | Customizable | 5m |
| 25m | 8.3m / 9.3m | Customizable | 5m |
| 30m | 9.1m / 10.1m | Customizable | 5m |
| 35m | 9.9m / 10.9m | Customizable | 5m |
| 40m | 10.7m / 11.7m | Customizable | 5m |
The ridge heights above follow the supplied product specification. Confirm the selected span, eave height, ridge height, and final structural configuration during project quotation and engineering review.
Outdoor wedding ceremonies
Wedding receptions
Banquet dinners
Garden weddings
Gala events and private celebrations
Hotel and resort functions
VIP hospitality areas
Corporate receptions
Product launches
Exhibition and presentation spaces
Outdoor dining venues
Customizable dimensions: Multiple span options and flexible lengths help accommodate different site layouts and project scales.
Aluminum alloy construction: The specified 6061-T6 extruded aluminum frame provides a modular structural system designed for professional event applications.
Flexible enclosure options: Roof coverings and wall systems can be selected to suit the desired appearance, daylight requirements, and venue function.
Project-specific configuration: Structural dimensions, entrance systems, accessories, and finishes can be coordinated around the buyer's requirements.
20x50x5m Atrium Tent Black aluminum alloy structure tents are now widely used in outdoor activities such as exhibitions and wedding parties due to their design concepts and novel structures.
875 m² atrium-style clear-span tent, 25m wide × 35m long. Glass walls, black aluminum frame, modular design. Ideal for weddings, galas, corporate events.

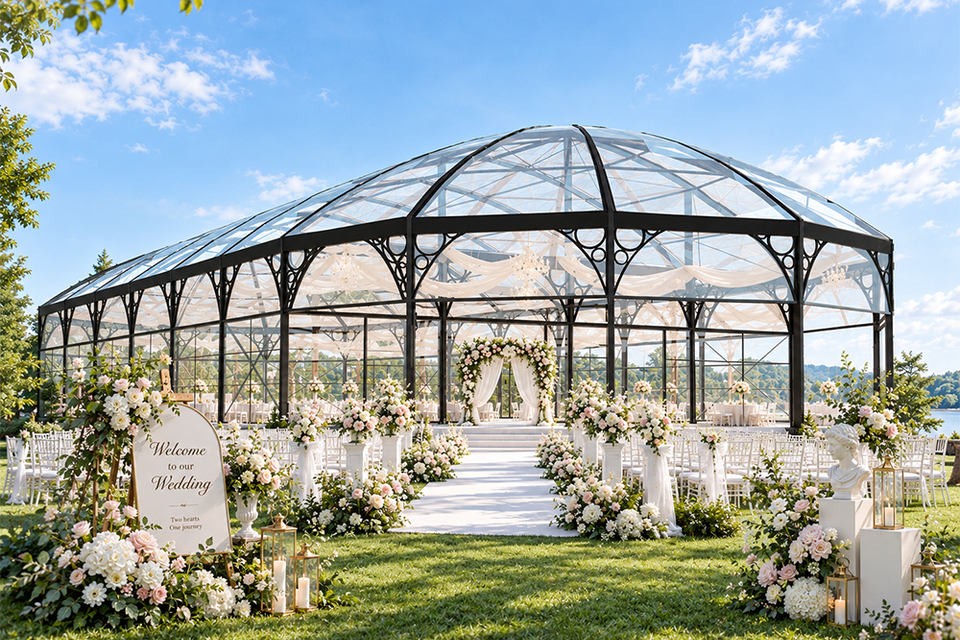

KENTEN Luxury Black Atrium Wedding Tent features an elegant black aluminum frame, transparent roof, and glass wall system, creating a premium outdoor wedding venue with a spacious clear-span interior. Ideal for luxury weddings, garden receptions, resorts, and high-end events.
