KENTEN 40x110m warehouse tent: 4,400m² column-free storage, aluminum frame, fire-retardant PVC. Installed in about one week. Request a quote.

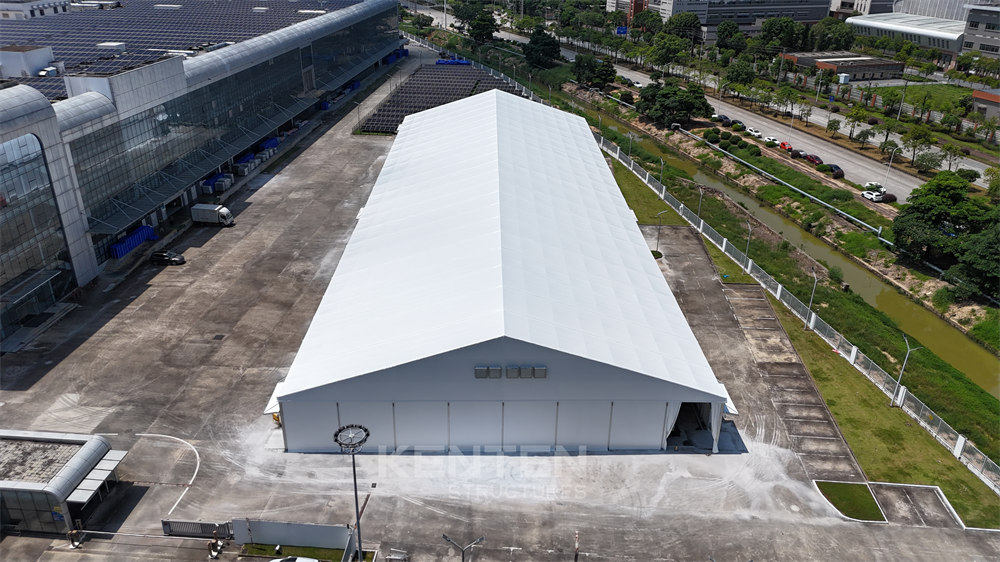

The KENTEN 40×110 m warehouse tent is 4,400 m² of usable storage with no internal columns. The clear-span aluminum frame bolts together on site. A typical build goes from delivery to operational in roughly one week, much faster than conventional steel construction.

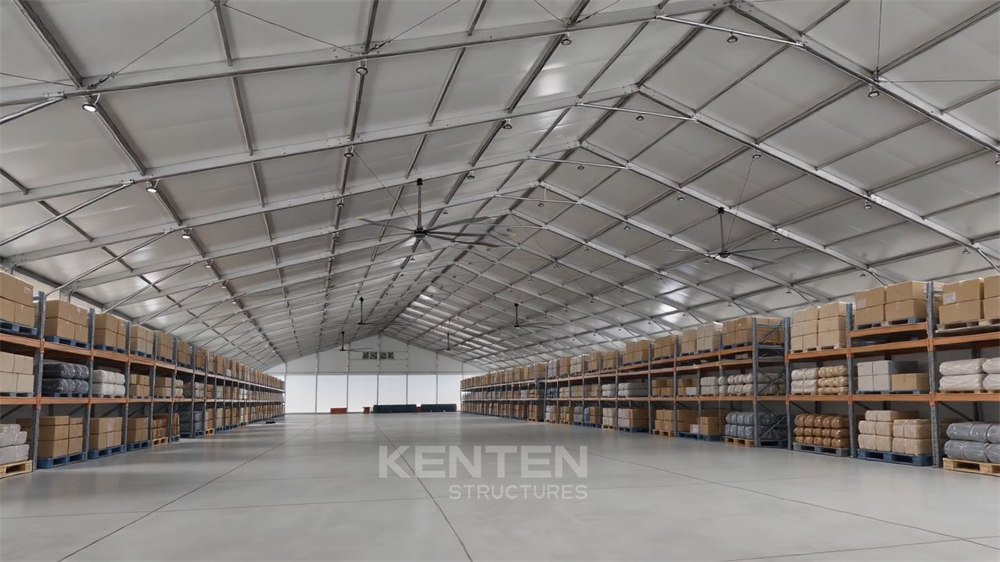

The 40 m span leaves the full width open for forklifts, container trucks and high-bay racking. Eave height is 5–8 m and ridge height is 8–15 m. Both can be adjusted to suit your operation. The 110 m length is built from 22 × 5 m bays, and the tent can be lengthened or shortened by adding or removing bays.
The frame uses 6061/T6 and 6082/T6 anodized aluminum with hot-dip galvanized steel connectors. The roof and walls are double-coated PVC in 650–900 g/m² weights, including blockout, reinforced and transparent options. All fabrics meet NFPA 701, DIN 4102 B1, M1 and GB B1 fire-retardant standards.
No concrete foundation is needed. The tent is fixed with steel ground anchors on soft ground or weight plates on hard surfaces such as asphalt or concrete. It can also be installed on compacted gravel, dirt or grass.
Optional accessories include electric roller shutter doors, high-speed PVC roll-up doors, steel or aluminum cassette flooring, LED high-bay lighting, HVAC, insulated sandwich-panel walls, fire suppression systems, smoke detectors and racking systems.
Typical uses include logistics transshipment hubs, e-commerce peak-season fulfillment, manufacturing raw-material and finished-goods storage, mining and energy supply yards, agricultural produce storage, cold-chain pre-positioning and emergency relief warehouses.
When your needs change, the tent can be dismantled and re-erected at another site. The aluminum frame is rated for 15–20 years of service; PVC covers typically last 8–10 years and can be replaced independently.
KENTEN has supplied temporary structures for the Beijing 2008 and 2022 Olympics, Guangzhou and Hangzhou Asian Games, and Formula 1 Miami 2022. The company is ISO 9001, ISO 14001 and ISO 45001 certified and ships to more than 60 countries.
| Attribute | Value |
|---|---|
| Brand | KENTEN |
| Product type | Industrial Warehouse Tent / Clear-Span Storage Tent |
| Material | Aluminum alloy 6061/T6, 6082/T6; fire-retardant PVC fabric |
| Color | White (customizable) |
| Size | 40 m × 110 m (4,400 m²) |
| Size type | Regular / Customizable |
| Span width | 40 m |
| Length | 110 m (22 × 5 m bays) |
| Bay spacing | 5 m |
| Eave height | 5–8 m (customizable) |
| Ridge height | 8–15 m (customizable) |
| Roof pitch | A-frame, 18° |
| Longest component | 10.5 m |
| Wind load rating | 100 km/h (Beaufort 10; higher ratings available) |
| Snow load | Calculated per project location; reinforcement available |
| Frame lifespan | 15–20 years |
| PVC lifespan | 8–10 years |
| Certification | ISO 9001, ISO 14001, ISO 45001; fabrics meet NFPA 701, DIN 4102 B1, M1, GB B1 |
| Warranty | Frame 15–20 years; PVC 8–10 years |
| Installation service | Global installation guidance or turnkey assembly |
| Parameter | Value |
|---|---|
| Span | 40 m |
| Length | 110 m (22 × 5 m bays) |
| Total area | 4,400 m² |
| Eave height | 5–8 m |
| Ridge height | 8–15 m |
| Wind rating | 100 km/h |
The main frame is 6061/T6 and 6082/T6 anodized aluminum. Steel connectors are Q235/Q355, hot-dip galvanized. The roof and wall fabric is double-coated PVC in 650–900 g/m² weights, with blockout, reinforced and transparent options.
Add electric roller shutter doors, high-speed PVC doors, cassette flooring, LED high-bay lights, HVAC, insulated wall panels, sprinklers, smoke detectors, ventilation louvers and racking systems.
Logistics hubs, e-commerce fulfillment centers, manufacturing buffer stock, mining supply yards, chemical storage, agricultural produce collection, cold-chain pre-positioning and emergency relief warehouses.
The tent bolts together on site and normally becomes operational in about one week. It needs only level ground. Fix it with steel ground anchors on soft surfaces or weight plates on asphalt or concrete.
Engineered for demanding storage and operations, our Aluminum-Frame Warehouse Tents combine durability with agility.
Engineered for demanding storage and operations, our Aluminum-Frame Warehouse Tents combine durability with agility. Featuring high-strength aluminum alloy frames and industrial-grade PVC fabric
Our temporary warehouse structures can be customized to suit your industrial needs. We offer accessories such as rolling doors to ensure safety.
